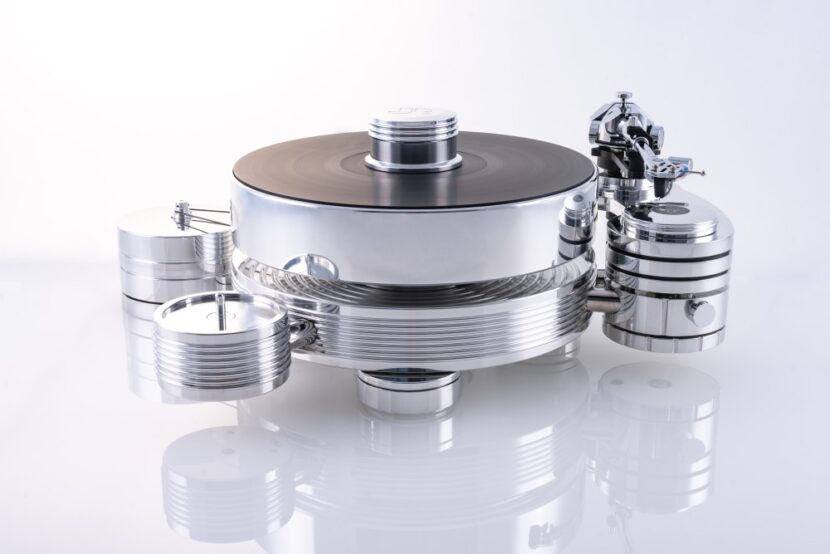

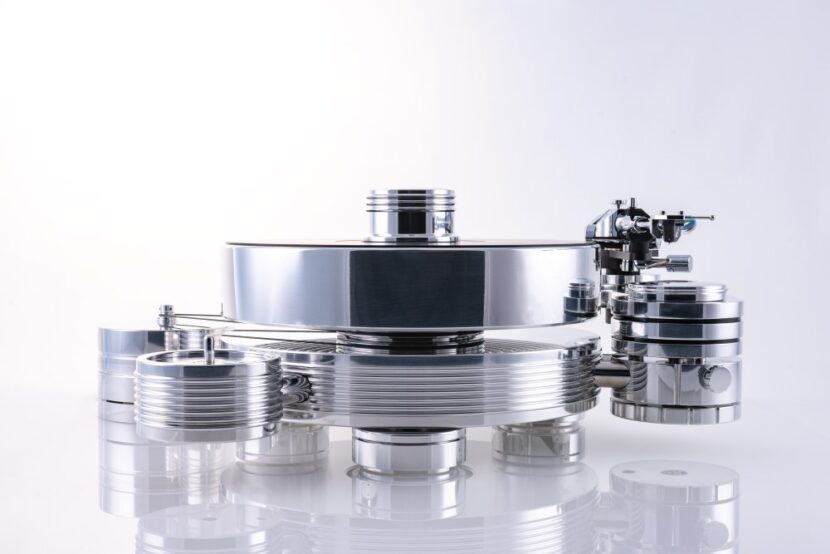

Transrotor Alto TMD

Name: Transrotor Alto TMD
SKU: 227
Price: 8765.00 CAD
Availability: InStock

MSRP $8,765.00

Alto TMD comes in a solid aluminum chassis, aluminum platter (9kg), TMD bearing and the option to equip up to 3 tone arm bases. The tonearm base can be adjusted to fit any 9 to 12- inch tone arms and has on-the-fly VTA adjustment. The armboard is a 2 piece assembly. The adjustable armboard base is universal to all tonearms, only the mounting ring disc have to be ordered to the specific tone arm mounting specification.

Standard package includes the Konstant Studio power supply, record weight (aluminum 370 gram), Transrotor Magnetic Drive bearing with hydraulic platter support, One Motor, One Tonearm Base (9” or 12”).

Optionally the Konstant Studio power supply can be upgraded with the Konstant M1, M2 reference or the Konstant FMD to improve speed accuracy. Up to 3 motors can be used to improve torque and accuracy. Transrotor Alto TMD is a versatile turntable that can be tailored to your immediate needs and allow for future upgrades.

Supports 3 tone arms.

» Download the Alto PDF

» Contact us to become a Transrotor dealer.

Standard equipment / features:

Chassis Solid Aluminum
Platter aluminum 9kg
Transrotor Magnetic Drive bearing with hydraulic platter support
One Motor
One Tonearm Base (9 inch to 12 inch), Stepless adjustable distance
Tonearm Bases can be adjusted in every direction
The tone arm height can be adjusted on the fly (VTA on the fly)
Record Clamp Aluminum (370 Gram)
Konstant Studio Power Supply

Size and weight

54cm W x 38 cm D x 21cm H 33 kg

Upgrade and accessories:

Additional Tonearm Arm Base (up to 3) for 9 inch to 12 inch tonearm(Rega, Sorange, SME, Reed, etc?)
Mounting Ring Disc for tonearms without changing the armboard
Additional Motor (up to 3) (Konstant M2 needed for two motors, Konstant FMD needed for three motors)
Konstant M1 Reference Power Supply for 1 Motor
Konstant M2 Reference Power Supply up to 2 Motor
Konstant FMD Power Supply (1-3 motor)

Online Reviews

High Fidelity Online

Prices

Alto TMD Standard Package	• Chassis Solid Aluminum • Platter aluminum, 9 kg • Transrotor Magnetic Drive bearing with hydraulic platter support • Transrotor TRA 9 tonearm • One Motor • One Tonearm Base (9” or 12”) • Tonearm Bases can be adjusted in every direction, the tone arm height can be adjusted on the fly while the record is playing (VTA on the fly) • Three tone arms of any kind and any length can be mounted • Record Clamp Aluminum (370 Gram) • Konstant Studio Power Supply	$ 16,035
Turntable Only	Standard Package without tonearm	$ 8,765
Optional Upgrade (add to base price at time of turntable purchase)
Konstant M1 Reference	Power Supply for One Motor	$ 455
Konstant M2 Reference	Power Supply for Two Motors	$ 1,070
Konstant FMD	Power Supply for 1 to 3 Motors	$ 1,825
Accessories
Tonearm Base 9” to 12”	9” to 12” Armboard (Rega, Sorane, SME, Reed, etc)	$ 1,855
Mounting Ring Disc	Changing to Different Tonearm	$ 435
Extra Motor	Konstant M2 is need for more than one motor	$ 1,145
Record Clamp Bench	Record Clamp Bench that hangs on side of platter	$ 380
Belt “Short”	Drive Belt for Motor	$ 29
Record Cleaning Brush	Record Cleaning Brush with Stand	$ 580
